Drone Dimensions

• Folded: 204 x 106 x 72.6 mm (without propellers)

• Unfolded: 242 x 334 x 72.6 mm (without propellers)

• Diagonal Distance: 372 mm

Takeoff Weight

• With Intelligent Flight Battery: Approx. 760g

• With Intelligent Flight Battery Plus: Approx. 832g

Flight Performance

• Max Ascension Speed: 5 m/s

• Max Descent Speed: 4 m/s

• Max Flying Speed: 18 m/s (no wind, sea level)

• Max Takeoff Altitude: ≤5000 m

• Max Hovering Time: ~29 minutes

• Max Flying Time: 38 minutes (standard battery), 47 minutes (battery plus)

• Max Tilt Angle: 35°

• Max Wind Resistance: 12 m/s

• Operating Temperature: 0°C to 40°C

Navigation & Hovering

• GNSS: BeiDou, GPS, Galileo, GLONASS

• Hover Accuracy:

  • Vertical: ±0.1 m (Vision), ±0.5 m (GPS)

  • Horizontal: ±0.3 m (Vision), ±0.5 m (GPS)

Expansion Port

• 12-PIN Data Interface (female)

---

Camera Specifications

• Lens FOV: 83°

• Aperture: f/1.7

• Focal Length: 6.71 mm (Equivalent to 24 mm)

• Sensor: 1/1.3-inch CMOS

• Effective Pixels: 48 MP

• ISO Range:

  • Photo: 100–6400

  • Video: 100–25600

• Shutter Speed: 2s – 1/8000s

• Max Photo Resolution: 8000 × 6000

• Max Video Resolution: 4K (3840 × 2160) at 60/30/25/24 fps

• Max Bitrate: 100 Mbps

• Formats: MP4 (video), JPEG/DNG (photo)

• Digital Zoom: 1–6x

• File System: FAT32 / exFAT

• Memory Card: Micro SD (8–256 GB, Class 10 or U3+)

---

Remote Controller

• Weight: Approx. 373g

• Dimensions: 204 x 91 x 47 mm

• Operating Frequency: 2.4000GHz – 2.4835GHz

• Battery Life:

  • 8 hours (no mobile charging)

  • 4 hours (charging mobile device)

• Battery: Li-ion, 3900 mAh, 3.7V

• Input: 5V/2A

• Operating Temp: 0°C to 40°C

• Charging Temp: 5°C to 40°C

• Max Signal Range: FCC ~20 km (open, interference-free)

• Latency: ~120 ms

• Mobile Ports: Lightning, USB-C, Micro-USB

---

Gimbal

• Type: 3-Axis Mechanical

• Rotation Range:

  • Pitch: -115° to 40°

  • Roll: -40° to 40°

  • Yaw: -40° to 40°

• Controllable Pitch: 10° to -90°

• Angular Vibration: ±0.005°

---

Batteries

Standard Intelligent Flight Battery

• Capacity: 4650 mAh

• Weight: Approx. 260g

• Voltage: 11.55V

• Charging Limit: 13.2V

• Type: Li-Po 3S

• Energy: 53.7 Wh

• Operating Temp: 0°C to 40°C

Intelligent Flight Battery Plus (Optional)

• Capacity: 5000 mAh

• Weight: Approx. 333g

• Voltage: 14.4V

• Charging Limit: 16.8V

• Type: Li-ion 4S

• Energy: 72 Wh

• Operating Temp: 0°C to 40°C

---

Charging Hub & Charger

Charging Hub

• Input: USB-C (5V–20V)

• Fast Charge: PD, QC3.0

• Output: 13.05V – 17.6V

• Operating Temp: 5°C to 40°C

Charger

• Input: 100V–240V (AC), 50Hz–60Hz, 1.5A

• Output (USB-C):

  • 5V–3A

  • 9V–3A

  • 12V–3A

  • 15V–3A

  • 20V–2.25A

• Power: 45W

---

App Compatibility

• App: FIMI Navi 3.0

• iOS 12.0 or later

• Android 9.0 or later

---

Key Features

• 48MP 1/1.3" CMOS sensor with HDR and dual native ISO

• Large f/1.7 aperture for excellent night performance

• 4K/60fps HDR video recording

• Advanced 3-axis mechanical gimbal (4th gen stabilization)

• RokLink 5.0 transmission with 20 km range & 120 ms latency

• Ergonomic, stretchable remote controller supports smartphones and iPad Mini

• AI Super Night Video with noise reduction

• GNSS multi-system compatibility for stable global positioning

• Smart distance measurement without GPS

• Optional battery plus for 47 min max flight time

• Accessory port for megaphone and payload modules

• Optional 4G Cellular Module for remote image streaming & safety backup

• Weather-resistant design (rain & snow-proof)

• Downward auxiliary light for visibility in poor weather

---

Package Contents

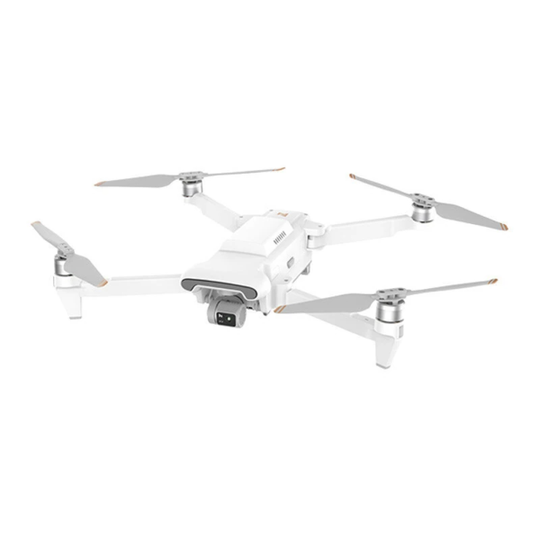

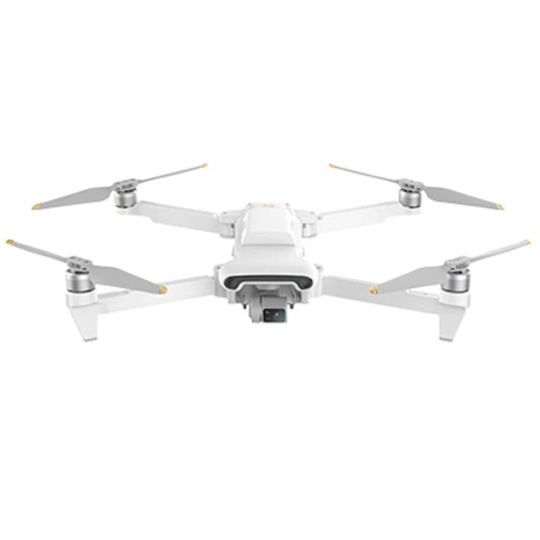

• 1 x FIMI X8 Pro 2025 Drone

• 1 x Remote Controller

• 1 x Battery

• 1 x Charger

• 3 x USB Cables

• 4 x Spare Propellers

• 1 x Gimbal Cover

• 2 x Manuals
