Specification
This Video is with the V340, the V640 is much better, but still good to look at this Video: CLICK HERE

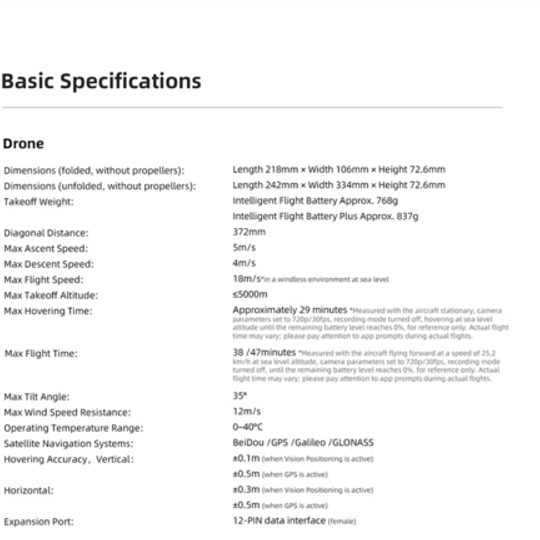

Drone
Dimensions (folded, without propellers): 218mm × 106mm × 72.6mm
Dimensions (unfolded, without propellers): 242mm × 334mm × 72.6mm
-
Takeoff Weight:
With Intelligent Flight Battery: Approx. 768g
With Intelligent Flight Battery Plus: Approx. 837g
Diagonal Distance: 372mm
Max Ascension Speed: 5m/s
Max Descent Speed: 4m/s
Max Flying Speed: 18m/s
Max Takeoff Altitude: ≤5000m
Max Hovering Time: Approximately 29 minutes
Max Flying Time: 38 / 47 minutes
Max Tilt Angle: 35°
Max Wind Speed Resistance: 12m/s
Operating Temperature Range: 0 to 40°C
Satellite Navigation: BeiDou, GPS, Galileo, GLONASS
-
Hovering Accuracy:
Vertical: ±0.1m (Vision), ±0.5m (GPS)
Horizontal: ±0.3m (Vision), ±0.5m (GPS)
Expansion Port: 12-PIN data interface (female)
Remote Controller
Product Weight: Approx. 373g
Dimensions: 204 × 91 × 47mm
Operating Frequency: 2.4000 GHz - 2.4835 GHz
-
Max Battery Life:
8 hours (without phone charging)
4 hours (with phone charging)
Battery: Li-ion, 3900mAh, 3.7V
Input: 5V ⎓ 2A
Operating Temp: 0 to 40°C
Charging Temp: 5 to 40°C
Max Range: Approx. 20 km (FCC)
Minimum Latency: Approx. 120ms
Mobile Device Ports: Lightning, USB-C, Micro-USB
Gimbal
Three-axis mechanical gimbal
Pitch: -115° ~ 40°
Roll: -30° ~ 30°
Yaw: -40° ~ 40°
Controllable Range (Pitch): 10° ~ -90°
Angular Vibration: ±0.01°
Thermal Camera
Sensor: Uncooled Microbolometer
FOV: 30.7°
Aperture: F/1.1
Focal Length: 19mm
Format Equivalent: 80mm
Depth of Field: 7.6m to ∞
Wavelength: 8~14μm
Digital Zoom: 8x
Photo Resolution: 640×480
Photo Format: JPG
Video: 640×480 @ 30fps
Video Format: MP4
Color Palettes: White Hot, Gold, Iron Red, Rainbow, others
Downward Positioning
Technology: Monocular Optical Flow and TOF
Measurement Range: 0.3m - 6m
Auxiliary Light: Dual LED

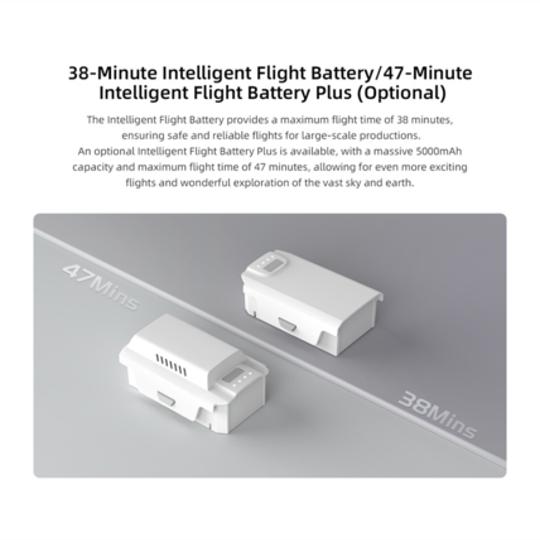

Intelligent Flight Battery
Capacity: 4650mAh
Weight: Approx. 260g
Voltage: 11.55V
Charge Limit Voltage: 13.2V
Type: Li-Po 3S
Energy: 53.7Wh
Operating Temp: 0 to 40°C
Intelligent Flight Battery Plus
Capacity: 5000mAh
Weight: Approx. 333g
Voltage: 14.4V
Charge Limit Voltage: 16.8V
Type: Li-ion 4S
Energy: 72Wh
Operating Temp: 0 to 40°C
Charging Hub
USB-C Input: 5V-20V
Fast Charging: PD, QC3.0
Output: 13.05V-17.6V
Battery Interface: 13.05V-17.6V
Operating Temp: 5 to 40°C
Charger
Input: 100V - 240V (AC), 50Hz - 60Hz, 1.5A
-
USB-C Output:
5.0V ⎓ 3.0A
9.0V ⎓ 3.0A
12.0V ⎓ 3.0A
15.0V ⎓ 3.0A
20.0V ⎓ 2.25A
Rated Power: 45W
App Requirements
FIMI Navi 3.0
iOS 12.0 or later, Android 9.0 or later
Camera Specifications
Wide-Angle Camera
Sensor: 1/2-inch CMOS
Lens: FOV 79°, Aperture F/1.6
Focal Length: 4.71mm (24mm equivalent)
Focus: 1m to ∞
Pixels: 48 million
ISO: 100-25600 (photo), 100-6400 (video)
Shutter: 1/8000s - 2s
Max Photo Size: 8064x6048
Max Video: 3840×2160 @ 60fps
Bitrate: 100Mbps
Format: MP4 (video), JPEG (photo)
File System: FAT32/exFAT
Digital Zoom: 1-5x
Tele Camera
Sensor: 1/2.5-inch CMOS
Lens: FOV 21.5°, Aperture F/3.0
Focal Length: 14.46mm (120mm equivalent)
Focus: 10m to ∞
Pixels: 13 million
ISO: 100-6400
Shutter: 1/8000s - 2s
Max Photo Size: 4000x3000
Max Video: 3840×2160 @ 30fps
Bitrate: 100Mbps
Format: MP4 (video), JPEG (photo)
File System: FAT32/exFAT
Digital Zoom: 5-30x
Features

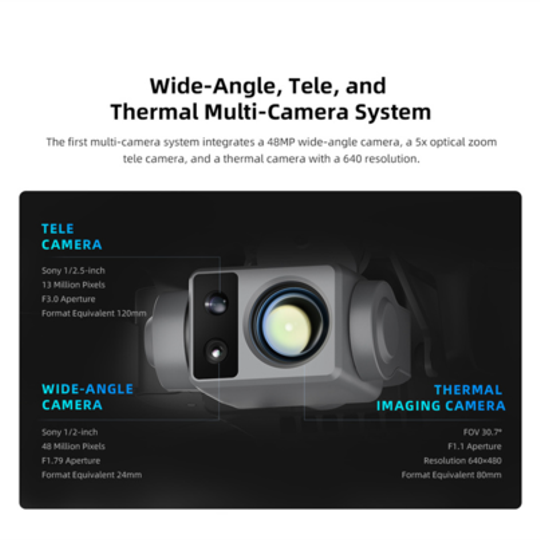

Triple-Camera Gimbal System: 48MP wide-angle, 13MP telephoto, and 640x480 thermal imaging cameras.
High-Resolution Imaging: 48MP photos, 4K HDR video at 30fps.
Long-Distance Video Transmission: Up to 20km with RokLink 5.0.

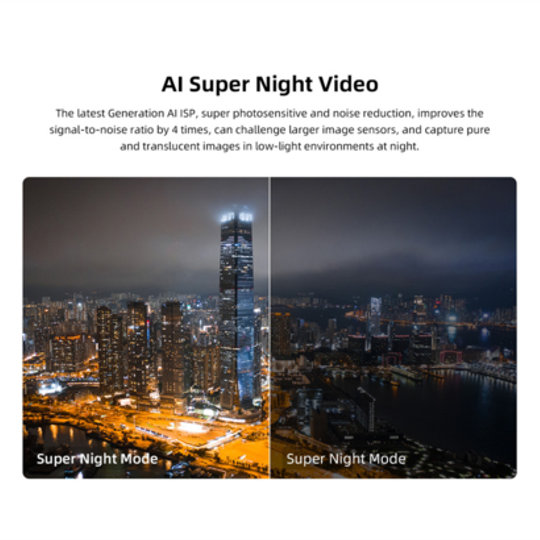

Enhanced Night Vision: AI Super Night Vision for low-light clarity.
Smart Flight Battery and Modes: Up to 47 mins of flight with multiple smart modes.

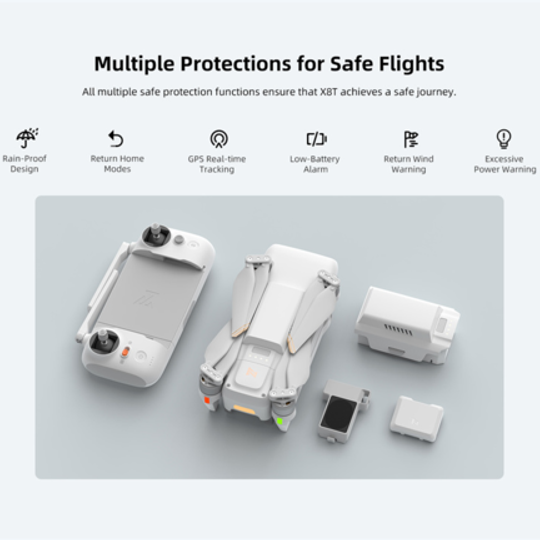

Package Includes
One Battery Version
1 x FIMI X8T V384 Quadcopter
1 x Remote Controller
1 x Intelligent Flight Battery
1 x Charger
3 x Digital Cables
4 x Spare Propellers
Two Batteries Version
1 x FIMI X8T V384 Quadcopter
1 x Remote Controller
2 x Intelligent Flight Batteries
1 x Charger
3 x Digital Cables
4 x Spare Propellers
1 x Backpack
